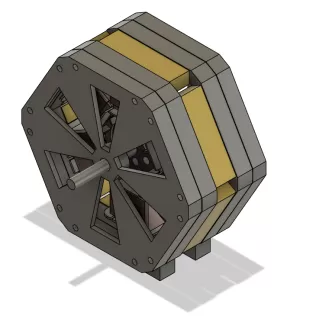

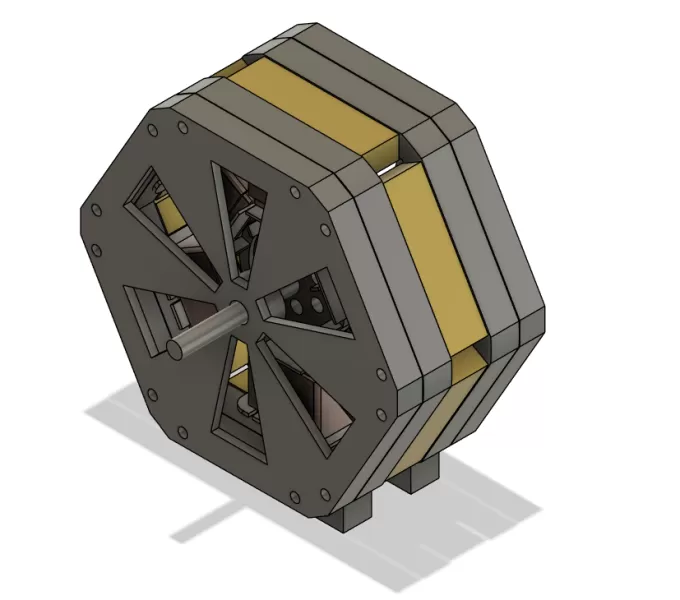

DIY Three-Phase Motor - Fully Covered and Small case (EI-112)
ID: 28619
$5.00
3D Model Details
-
Texture: No
-
Multipart model: Yes
-
File format: stl
-
File size: 172.13 KB
-
Upload date: 03/10/2026
-
Last update: 03/10/2026
Description

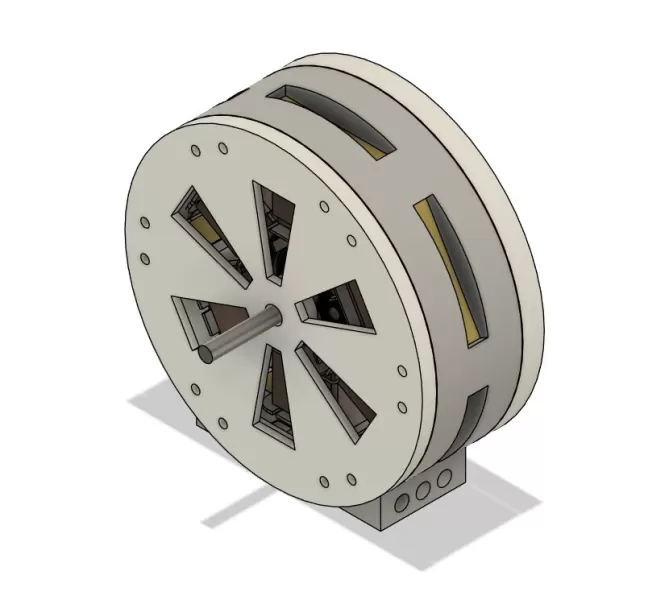

A fully covered, round enclosure for a DIY Three-Phase Motor. The supports are 3D printed to house EI-112 silicon steel laminations and 10mm bearings.
Technical Specifications:
Compatible Rotor: 65 mm maximum diameter
Custom Bobbins: Designed for 318 turns of 20 AWG wire
Laminations: Uses modified "T-shape" EI-112 silicon steel
Fasteners: M5 - 80 mm bolts
Operation Specs: 24V / 10A Watch it in action: https://www.youtube.com/watch?v=2lBsQ7Rwbvg
Included STL Files:
Base
Front Plate (Round)
Back Plate (Round)
Bobbins (Designed for a 5kg stack of modified EI-112 laminations)
Printer: FDM
Layer Height: 0.28 mm
Speed: 130 mm/s
Nozzle Temperature: 230°C
Bed: 80°C
Material: PETG (Required)
Technical Specifications:
Compatible Rotor: 65 mm maximum diameter
Custom Bobbins: Designed for 318 turns of 20 AWG wire
Laminations: Uses modified "T-shape" EI-112 silicon steel
Fasteners: M5 - 80 mm bolts
Operation Specs: 24V / 10A Watch it in action: https://www.youtube.com/watch?v=2lBsQ7Rwbvg
Included STL Files:
Base
Front Plate (Round)
Back Plate (Round)
Bobbins (Designed for a 5kg stack of modified EI-112 laminations)
Printer: FDM
Layer Height: 0.28 mm
Speed: 130 mm/s
Nozzle Temperature: 230°C
Bed: 80°C
Material: PETG (Required)
