Automatic winding machine - 3 configurations
ID: 28617
$8.00
3D Model Details
-
Texture: No
-
Multipart model: Yes
-
File format: stl
-
File size: 697.09 KB
-
Upload date: 03/10/2026
-
Last update: 03/10/2026
Description
NOW INCLUDES ARDUINO CODE FOR TB6600 DRIVERS!
MODIFIED FOR 3D FILAMENT

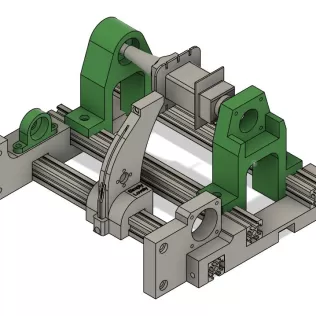

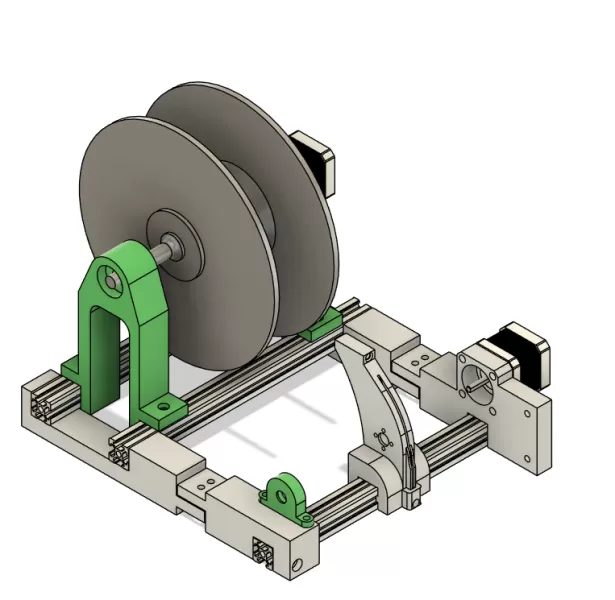

This is an automatic winder, specifically designed to work with 3 differents configurations, EI112, EI150 and Filament for 3D printing.
The included 3D printable PETG bobbins are designed to fit the winder mechanism perfectly. The copper wire feeder is designed for a maximum wire gauge of 20 AWG.
Pro Tip: To prevent winding issues and ensure agility, we recommend mounting the source wire spool on a friction-less holder, placed at a 90° angle to the winder for a smooth feed.
Required Hardware (Bill of Materials):
20x20 Aluminum Extrusion Profiles
10mm and 8mm bearings
NEMA17 Stepper Motors
TB6600 Stepper Motor Drivers
M8 Threaded Rod
Assorted T-nuts and bolts for 2020 profile
MODIFIED FOR 3D FILAMENT
This is an automatic winder, specifically designed to work with 3 differents configurations, EI112, EI150 and Filament for 3D printing.
The included 3D printable PETG bobbins are designed to fit the winder mechanism perfectly. The copper wire feeder is designed for a maximum wire gauge of 20 AWG.
Pro Tip: To prevent winding issues and ensure agility, we recommend mounting the source wire spool on a friction-less holder, placed at a 90° angle to the winder for a smooth feed.
Required Hardware (Bill of Materials):
20x20 Aluminum Extrusion Profiles
10mm and 8mm bearings
NEMA17 Stepper Motors
TB6600 Stepper Motor Drivers
M8 Threaded Rod
Assorted T-nuts and bolts for 2020 profile
