V6 JLB X HSP TRUGGY 1:8 4WS 4WD (4 WHEEL STEERING)

RC CAR PRINTED JLB X HSP TRUGGY 1:8 4WS 4WD
(4 WHEEL STEERING X CENTRAL DIFF)

Ultra-high-performance 1/8 scale RC car, 3D printable, using standard JLB CHEETAH J3 parts.
The design is improved, and much more durable than the original. Easy Fix, Strong, Modulable, Big battery place, Speed 100Km/h in 4S.
4WD And 4WS
– Ender 3 compatible,

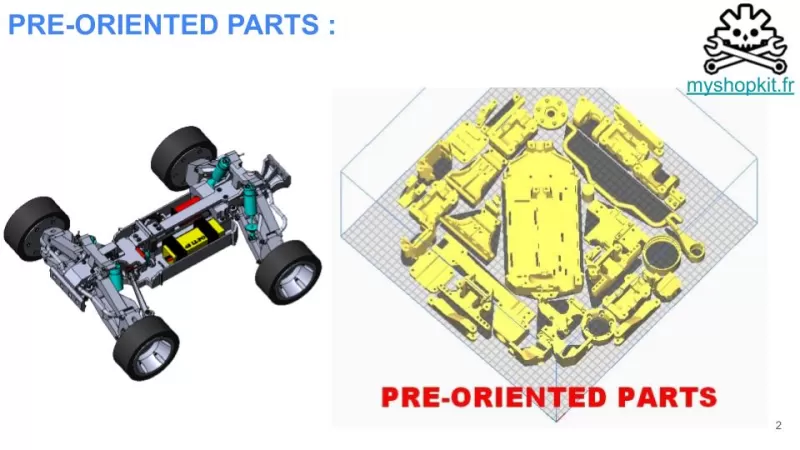

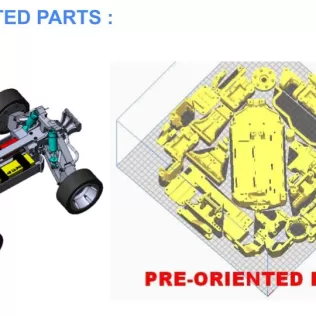

– STL Pré-oriented (ready to print),
– Full Metal transmission,
– 4 arms = 1 arm (Lowers and Uppers),
– Modulable,
– Only M3 Screws / Washers / Nuts
– 17mm Wheel Hub

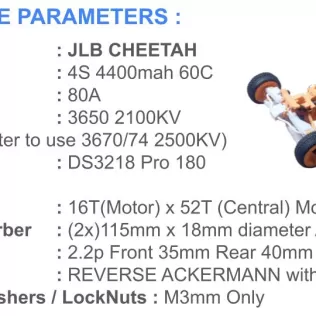

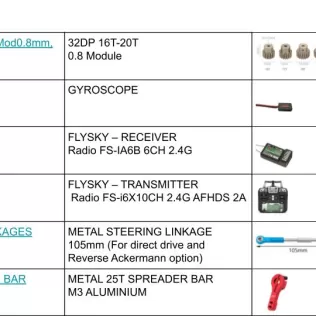

Recommended Electronic hardware :

– D3660 3150KV 5mm
– 4S 4500mah 60C
– ESC 10BL120
– Servo DS3218 PRO 180deg

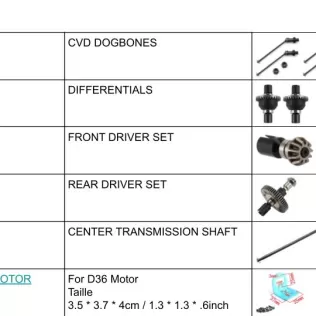

Recommended Mechanical hardware : (with REF code for search Aliexpress)

– M1 Steel Pinions Gears 14T – 20T
– Rolling 6800ZZ ABEC 7
– (X2) Front Gear for Diff (REF: EA1056)
– HSP MOTOR MOUNT (REF: HSP MOTOR MOUNT)
– CENTRAL DIFF (REF: HSP 60065)
– (X2) TRANSMISSION DOGBONES 106mm, Cup 7mm, Pin 3mm (REF: HSP 62021 FOR HSP 94762)
– Differentials (REF: EA1057)
– CVD (REF: EA1061)

BUILD GUIDE :

https://docs.google.com/presentation/d/1M9e1Y4eSDNYdJnah7bSyBt_wpbW5PH8s_v_gSeYQH3E/edit?usp=sharing

DRIVE TEST :

https://youtu.be/R_dJ-n3_QSA

BUILDING VIDEO LINK :

https://youtu.be/ltlX8YH-RXE

PREMIUM VERSION GOT :

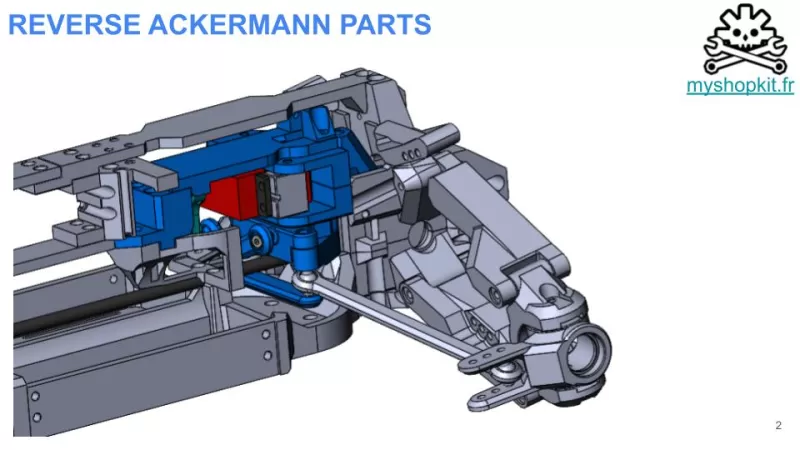

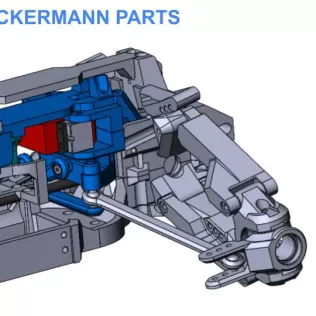

– New REVERSE ACKERMANN STEERING SYSTEM Best for max angles
– New DIRECT DRIVE STEERING SYSTEM Best for Bash
– New Steering Cup Hubs and linkage
– New additional Battery Side Mount
– New Slim / Medium / Wide / Extra Wide Chassis

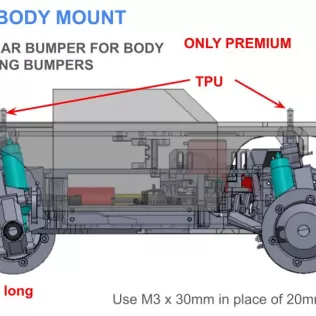

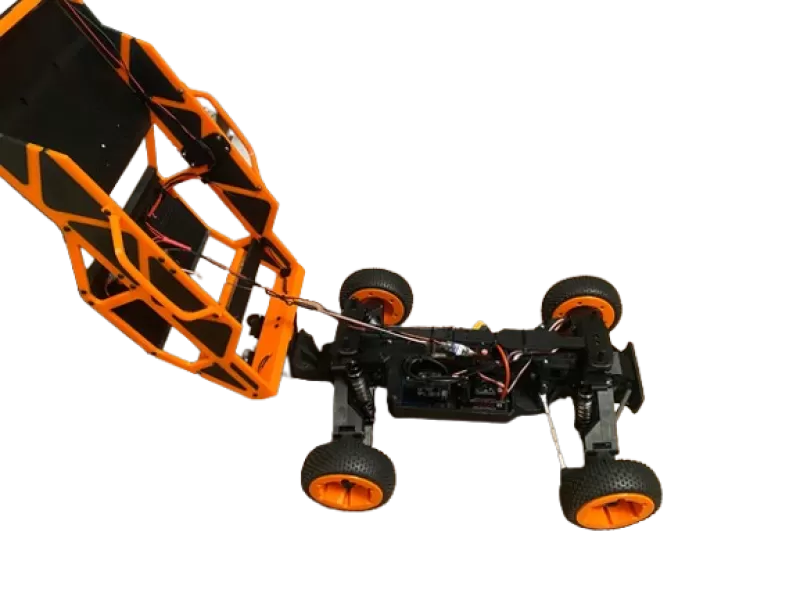

– New Body Mount + Body upper protection

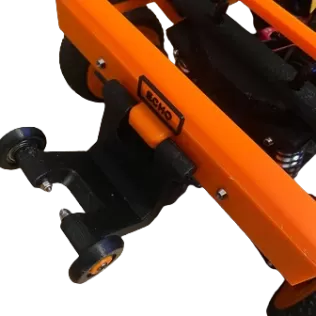

– New Wheelie Bar
– All RIMS Sizes and offsets STL kit
– Transmission Cover
– Big ESC Hobby wing Max8(6S) or Max6(8S) Dual Place Capability
– Big Battery Place
– FPV Protection

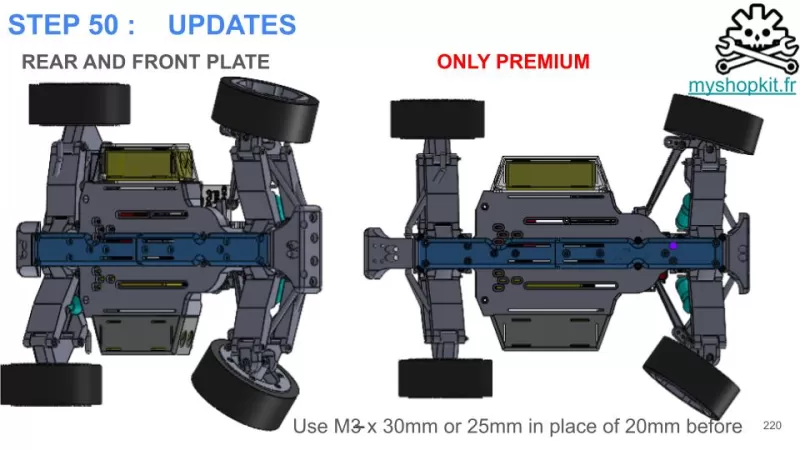

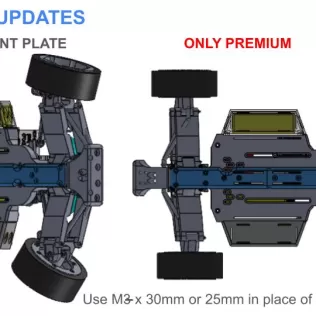

– Lower Protection Pate
– Gopro mount
– More adjustment holes
– Fresh Update and Upgrade
– Thanks from the creator

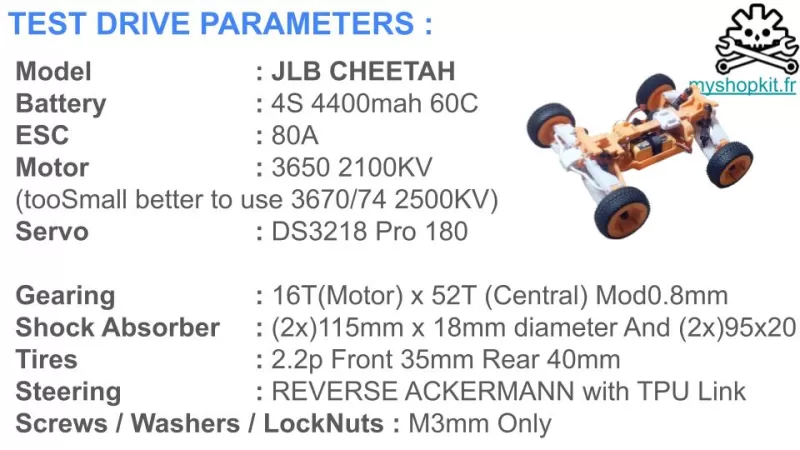

DRIVE TEST :

Drive test 3 :
https://youtu.be/SvWld79_sfc?si=IxgxMczxTGTEKQea
Drive test 2 :
https://youtu.be/yqldffKXP6s?si=-j6Je2f98ZwKowQO
Drive test 1 :
https://youtu.be/OAT00DGrQRY?si=kfoROmn45r2Mdgoa

PREMIUM LINKS :

Official website
https://myshopkit.fr/
Printables
https://www.printables.com/model/1566225-v6-jlb-cheetah-x-hsp-rc-car-truggy-18-4-wheel-stee
Cults
https://cults3d.com/fr/cr%C3%A9ations/v6-jlb-cheetah-rc-car-truggy-1-8-4ws-4wd-premium
Cgtrader
https://www.cgtrader.com/3d-print-models/hobby-diy/robotics/v6-jlb-cheetah-x-hsp-rc-car-truggy-1-8-4ws-4wd-premium
Creality
https://www.crealitycloud.com/model-detail/v6-jlb-cheetah-x-hsp-rc-car-truggy-1-8-4ws-4wd-premium?source=22

FREE VERSION GOT :

– ALL PARTS TO RUN A GOOD DEMO VERSION ;)
– New REVERSE ACKERMANN STEERING SYSTEM Best for max angles
– Slim Version of the Chassis
– Motor Mount D36 D42
– Metal Motor Mount Capability
– RIMS Hexa 17mm
– Standard ESC Place Capability
– No additional parts
– No bumpers
– No Lower Protection
– No willie Bar
– …

NEEDS :

TPU ( 500g )
Arms
Bumpers
PLA Plus ( 1Kg )
All the Rest

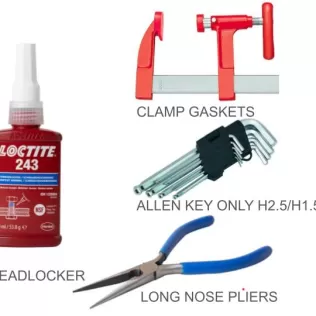

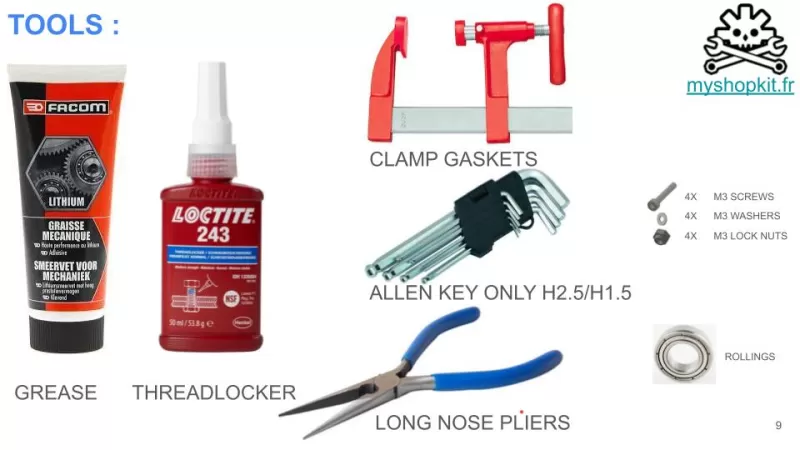

TOOLS :

Hallen H2.5mm(for M3 Screws) / H1.5(for Pinion)
Long Nose Pliers
ThreadLocker
Grease
Clamp Gaskets

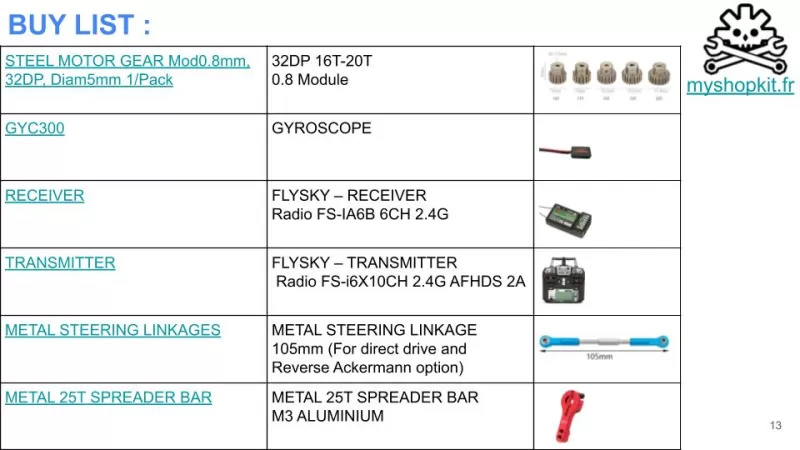

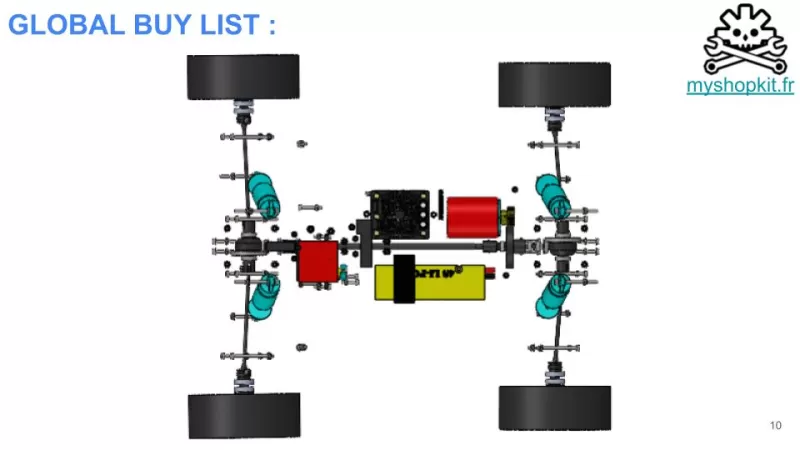

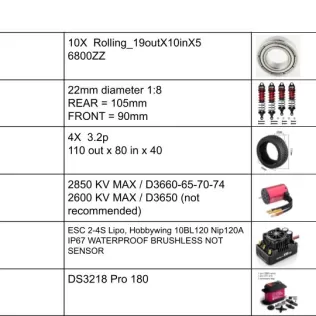

HARDWARE STORE :

Rolling 6800ZZ ABEC 7 ( X 8)
Metal Steering Linkages 105mm ( X 2)
Washers M3 ( X 100)
Lock Nuts M3 ( X 100)
Screws
M3 x 5mm Hexa ( X 8) (Motor Mount)
M3 x 14mm Hexa ( X 10) (Steering Cup Hub)
M3 x 20mm Hexa ( X 60) (ALL THE REST)
M3 x 30mm Hexa ( X 2) (Shocks Absorbers / Reverse Ackermann Steering)
M3 x 40mm Hexa ( X 24) (ARMS / Reverse Ackermann Steering)

TAGS :

– JLB CHEETAH X HSP
– Ender 3 compatible
– PreOriented STL PARTS
– 3D Printed RC Car
– Reverse Ackermann Steering Compact System or direct drive steering
– Full Metal transmission
– Metal Steering Linkages Compatible 105mm
– Brushless Motor 3660 3150KV Recommended up to 4268 (3650 min 3150KV max)
– 3S -4S - 6S
– DUAL3S = 6S / DUAL4S = 8S / DUAL6S = 12S (soon DUAL8S = 16S $$$)
– ESP Front Gyroscope
– Pinion and Gearing Module 1mm (1mm Diametral Pitch) - No cogging issues
– Metal Differential mechanism Central axis Central drive shaft Motor-Gear
– Printed Beadlock Rims 2.2p or 3.2p
– Dogbones Hexa 17mmm
– Strong modulable design easy replace
– Standards Parts
– 4 Arms = 1 Arm (Lowers and Uppers)
– 4WD -2WD -4x4 -2x4
– With or Without Anti roll Bar
– 1:8 Hardware
– No Glue Only M3 Screws Washers and LockNuts
– LED Light System Front and Rear
– Drift
– GoPro Mount
– Body Mount + upper protection
– Wheelie Bar

TAGS:

RC car, jlb, 1:8, 4WD, Ender3, CHEETAH, 4WS, 4WD, HSP

CONCEPTION / ADVANTAGES :
Cup hub : type kyosho + all tires + flexible + fixation proto36
Arms : réversible 1 pour 4, flexible type traxxas, hauteur châssis réglable, locked by screws and lock nuts.
Arms mount : M4 + remplacement rapide
Renfort : triple deck
Shock absorber : max diam 36mm + extra renforcé + flexible + protected

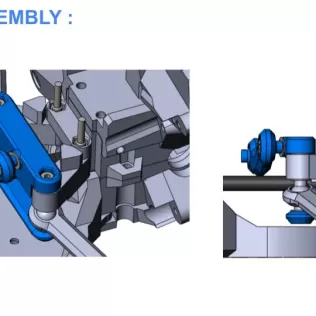

Steering : flexible + 45deg + compact + gyro place + centered + 4ws
Transmission : solid + covered + full métal + cvd + bearing oversized + M1mm
Battery : 8000mah 4S place
Multiples bodies mount
Willie bar
Only Standards parts

If you like it please buy it

ENJOY !
