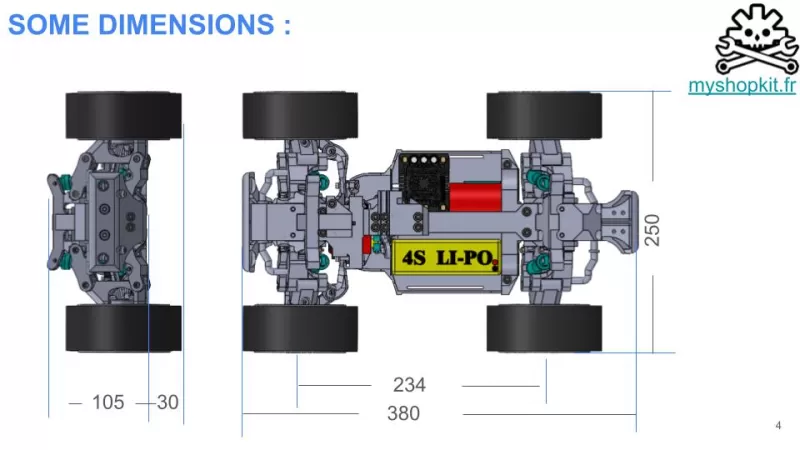

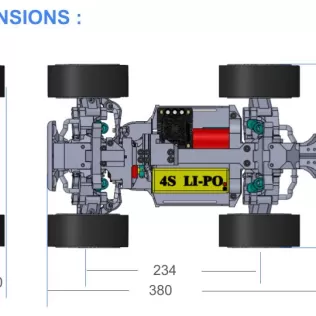

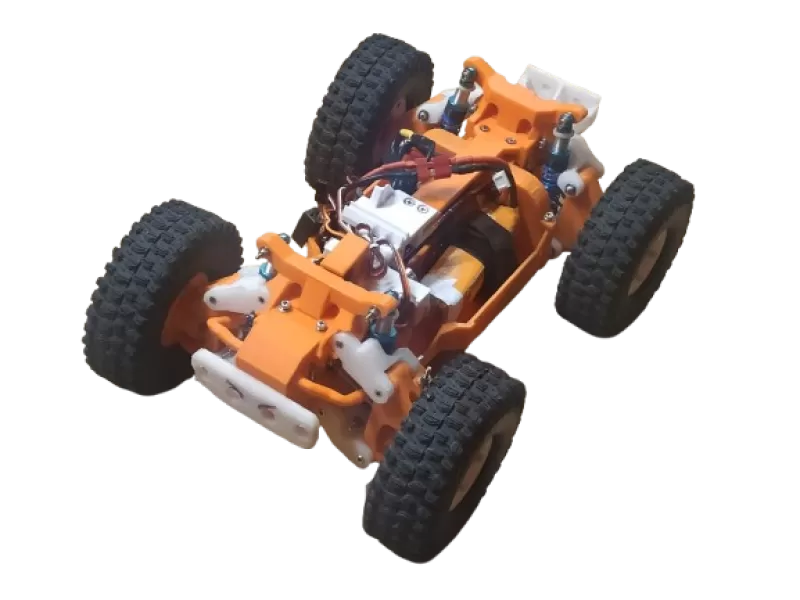

V8 WLTOYS 144 & 124 RC CAR TRUGGY 1:12 & 1:14 PREMIUM

Ultra-high performance 3D printable RC car, using standard WLTOYS parts.
The design is improved, and much more durable than the original.

In this kit there are two types of steering,
Steering Ackermann system or Direct Drive system.
If you choose one or the other only print the parts with the corresponding name.
The parts are stored in folders with logical names but it is best to read the build guide.

Simply Unmount The old parts of the Ackermann Steering System and the Chassis brace, replace by the direct drive steering and you got a Heavy and precise Direct Drive Steering System.

New Heavy Steering Cup Hub and Front Hub Carrier and steering linkages included.

You can also just take the New Heavy Steering Cup Hub and Heavy Front Hub Carrier if you prefer the old ackerman system.

No need to reprint all

BUILD GUIDE :

https://docs.google.com/presentation/d/1xQednf_rth1foSpnl_zI8gsLzxE91GRotefnCwp8eBw/edit?usp=sharing

BUILDING VIDEO :

https://www.youtube.com/watch?v=ltlX8YH-RXE

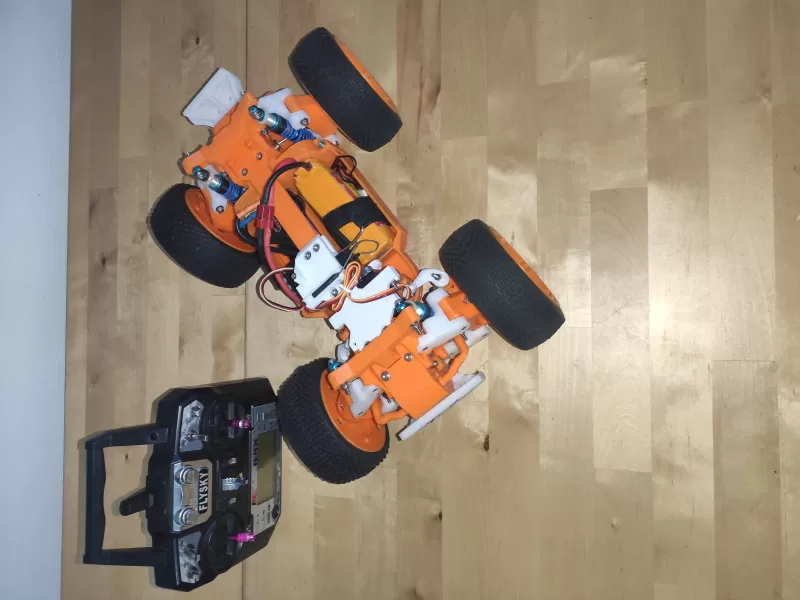

DRIVE TEST :

https://www.youtube.com/watch?v=eYnTohvDwP8

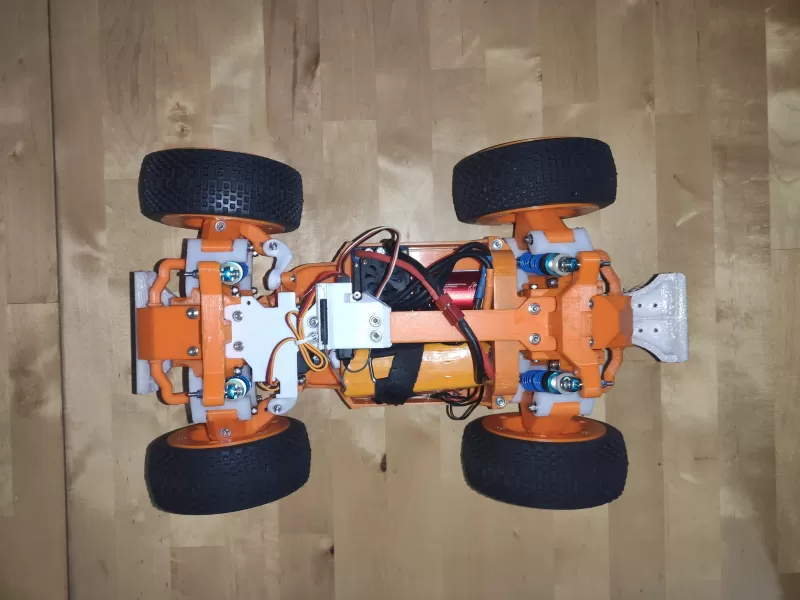

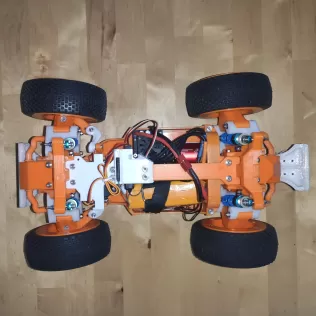

PREMIUM VERSION GOT :

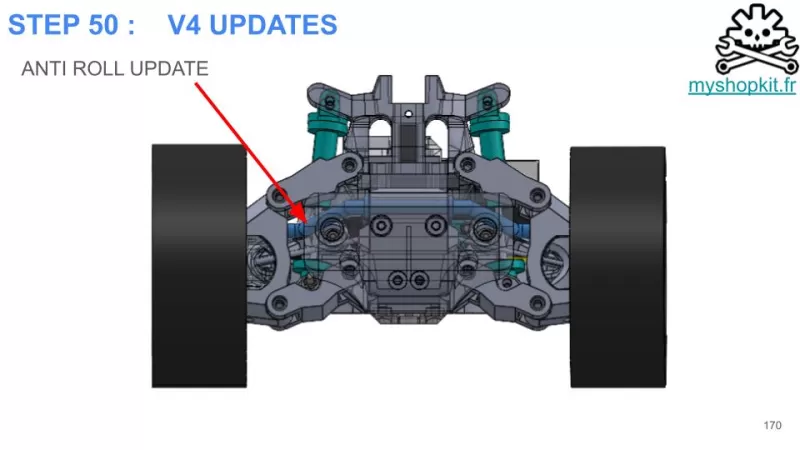

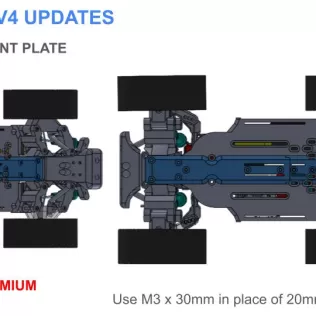

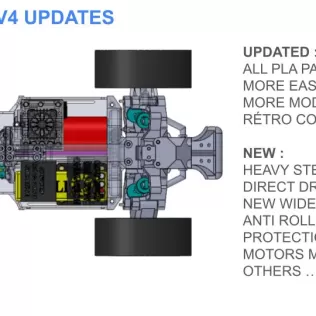

New REVERSE ACKERMANN STEERING SYSTEM
New DIRECT DRIVE STEERING SYSTEM

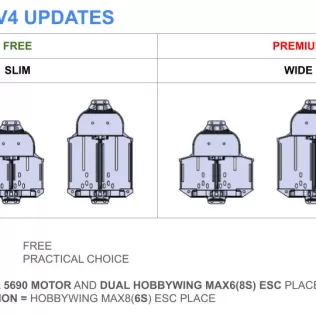

New Slim / Wide Chassis

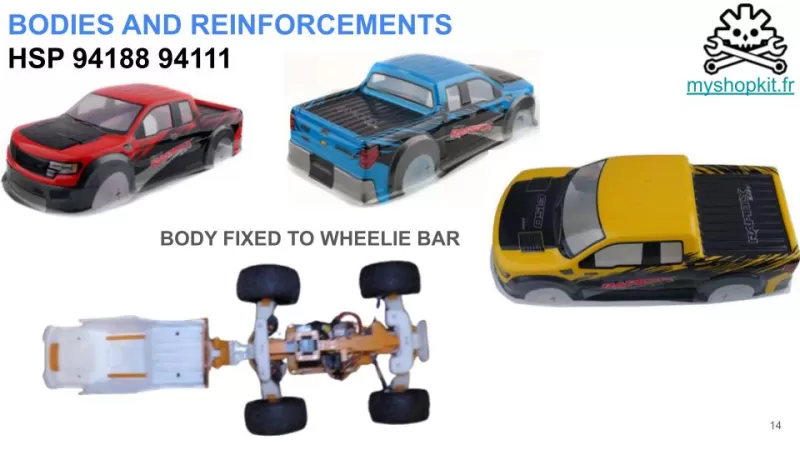

New Body Mount + Body upper protection
New Wheelie Bar

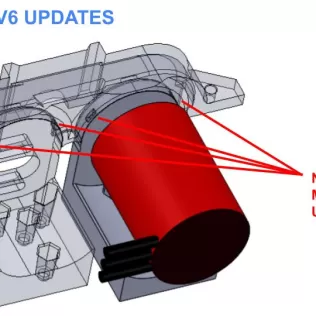

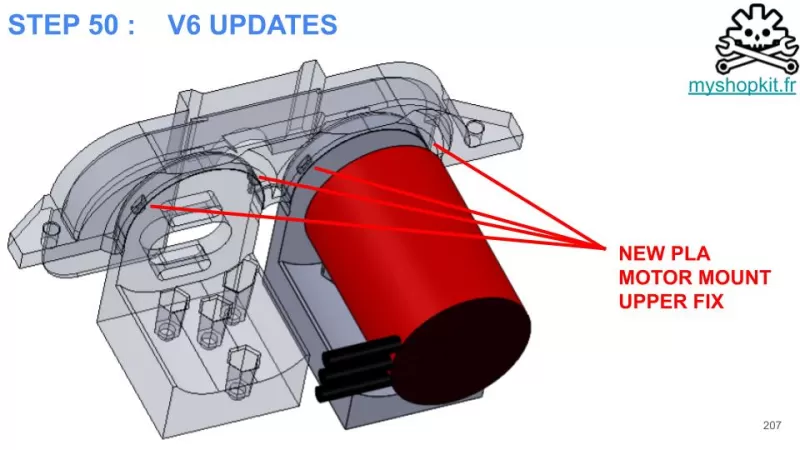

All Type Motors Mounts D36 D42 D49 D56
All RIMS Sizes and offsets STL kit
DUAL Motors Capability PLA or Metal
DUAL Motors Transmission Cover PLA or Metal
Big ESC Hobby wing Max8(6S) or Max6(8S) Dual Place Capability
FPV Protection
Protection Plate
More adjustment holes

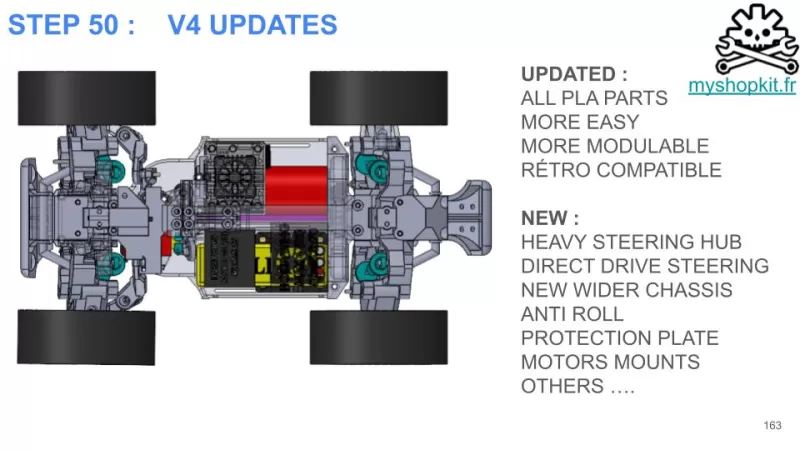

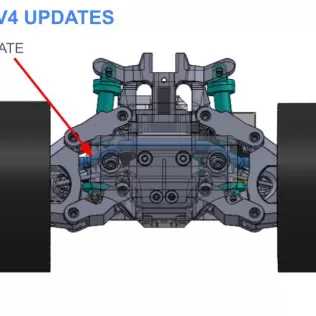

Fresh Update and Upgrade
Thanks from the Creator

PREMIUM LINKS :

Official website :

https://www.myshopkit.fr

Cults
V7 wltoys 144
https://cults3d.com/fr/cr%C3%A9ations/v3-rc-car-1-14-wltoys-144-diy-edition-premium
V7 wltoys 124
https://www.cgtrader.com/3d-print-models/miniatures/vehicles/v3-rc-car-wltoys-124-diy-edition
V7 wltoys 144 & 124
https://cults3d.com/fr/cr%C3%A9ations/v3-rc-car-1-14-wltoys-144-124-diy-edition-premium

Cgtrader
V7 wltoys 144
https://www.cgtrader.com/3d-print-models/miniatures/vehicles/v3-rc-car-wltoys-144-diy-edition-premium
V7 wltoys 124
https://cults3d.com/fr/cr%C3%A9ations/v3-rc-car-1-12-wltoys-124-diy-edition-premium
V7 wltoys 144 & 124
https://www.cgtrader.com/3d-print-models/miniatures/vehicles/v3-rc-car-wltoys-144-and-124-diy-edition-premium

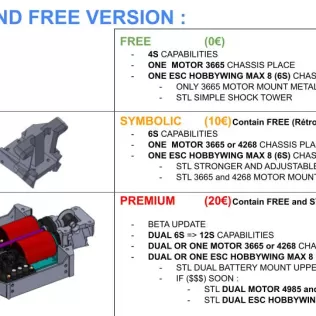

FREE DEMO VERSION GOT :

Slim Version of the Chassis
PLA Motor Mount D36 D42
Metal Motor Mount Capability
Mono Motor Transmission Cover For PLA and Metal (but dual motors D36 D42 capability :)
RIMS 1.9p 2.2p 3.2p Hexa 12mm
Standard ESC Place Capability
ALL PARTS TO RUN A GOOD DEMO VERSION ;)
New DIRECT DRIVE STEERING SYSTEM
New REVERSE ACKERMANN STEERING SYSTEM

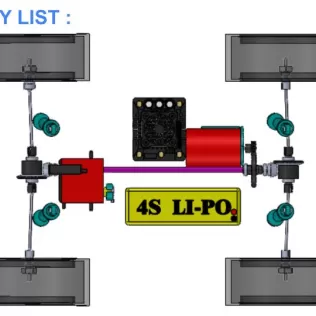

LIST OF COMPATIBILITY (and retro compatibility)

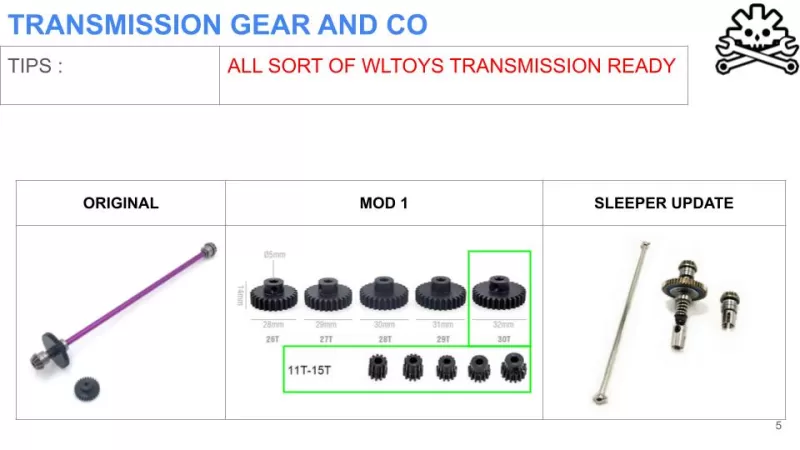

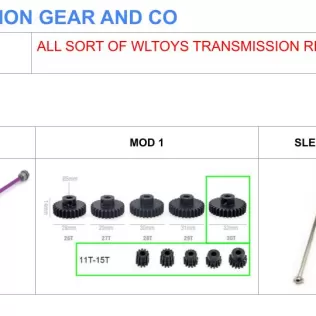

Transmission gear always from :

Wltoys 144 or 124
Official
Mod 1mm
Update Sleeper gear

Dogbone M3 diam 4mm and transmission gear and diff from :

14401 14402 144010
124007 124016 124017 124018 124019 probably : 124008 (+124010) not tested but why not Bearing : MR84ZZ OR 684ZZ

Dogbone M4 diam 5mm(best choice)

12428 12427 12423 Bearing : 688ZZ AND MR115ZZ

There are two types of CVD, M3 4mm or M4 5mm.

if you choose CVD M3 4mm official or enhanced from WLtoys 144 or 124 then you will need to choose 4mm bearings, and so you have the choice between two types of bearings, either the small official 4x8x3 MR84ZZ ABEC7 OR the recommended 4x9x4 684ZZ ABEC7 for more performance.

if you choose CVD M4 5mm from WL toys 12428 12427 12423 then you will need 8x16x5 688ZZ ABEC7 AND 5x11x4 MR115ZZ ABEC7 bearings

Tips : CVD M4 5mm from WL toys 12428 12427 12423 is the best choice, with no change from direction, arms, transmission and diffs and diffs cups only change the CVDs and hub cup carriers front/rear and the bearings and that's all. You have the strongest CVD now.

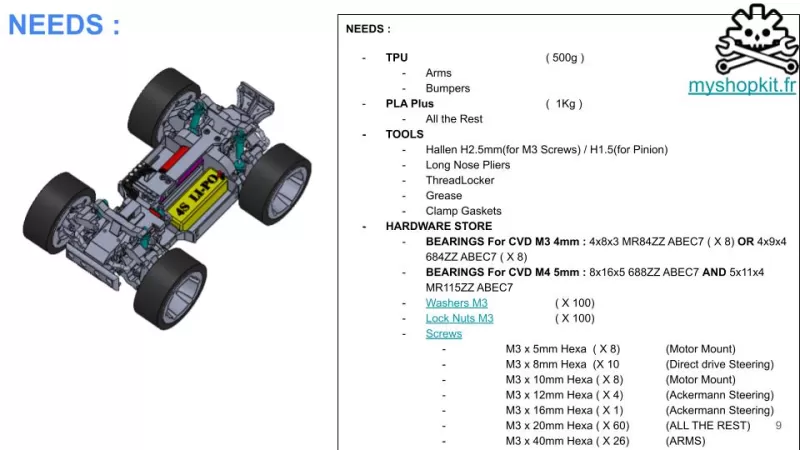

NEEDS :

TPU ( 500g )
Arms
Bumpers

PLA Plus ( 1Kg )
All the Rest

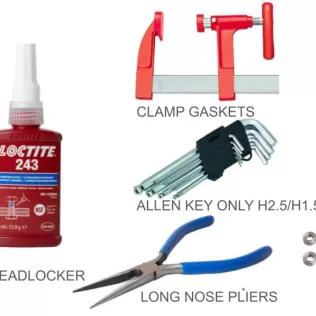

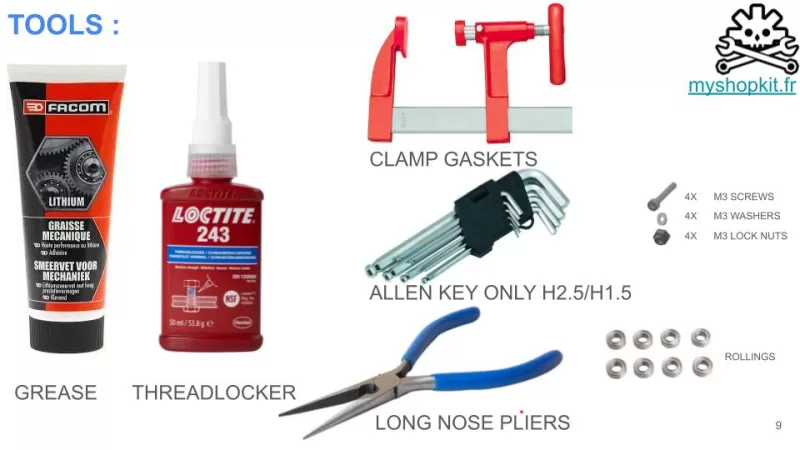

TOOLS :

Hallen H2.5mm(for M3 Screws) / H1.5(for Pinion)
Long Nose Pliers
ThreadLocker
Grease
Clamp Gaskets

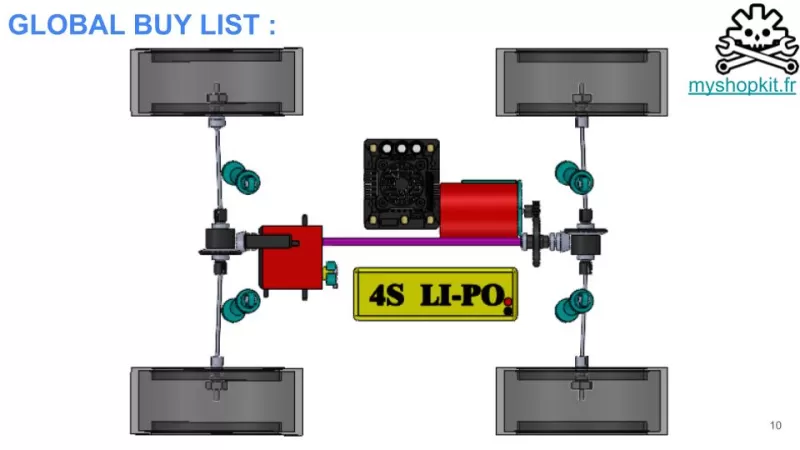

HARDWARE STORE :

BEARINGS For CVD M3 4mm :
4x8x3 MR84ZZ ABEC7 ( X 8)
OR
4x9x4 684ZZ ABEC7 ( X 8)

BEARINGS For CVD M4 5mm :
8x16x5 688ZZ ABEC7

AND
5x11x4 MR115ZZ ABEC7

Washers M3 ( X 100)
Lock Nuts M3 ( X 100)
Screws
M3 x 5mm Hexa ( X 10) (Motor Mount)
M3 x 8mm Hexa (X 10) (Steering Cup Hub)
M3 x 14mm Hexa ( X 10) (Steering Servo)
M3 x 20mm Hexa ( X 60) (ALL THE REST)
M3 x 30mm Hexa ( X 20) (Shocks Absorbers / Reverse Ackermann Steering)
M3 x 40mm Hexa ( X 20) (ARMS / Reverse Ackermann Steering)

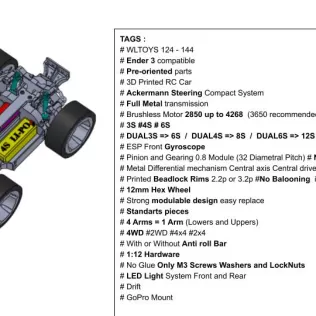

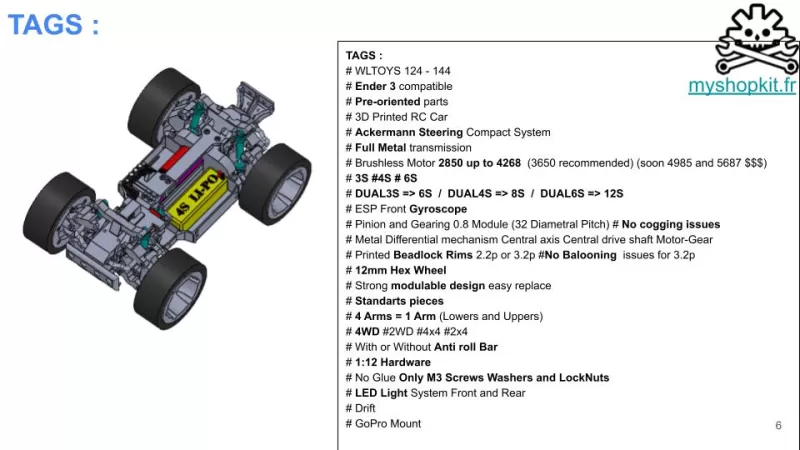

TAGS :

WLTOYS 144-124
Ender 3 compatible
PreOriented STL PARTS

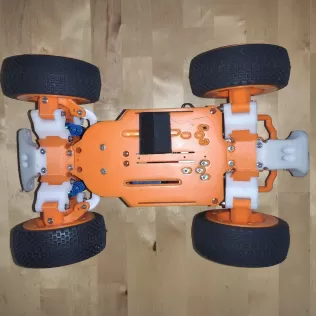

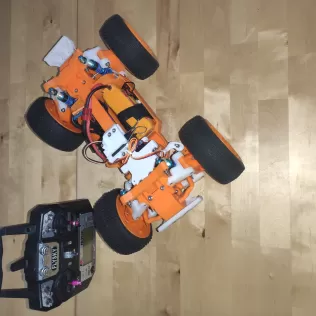

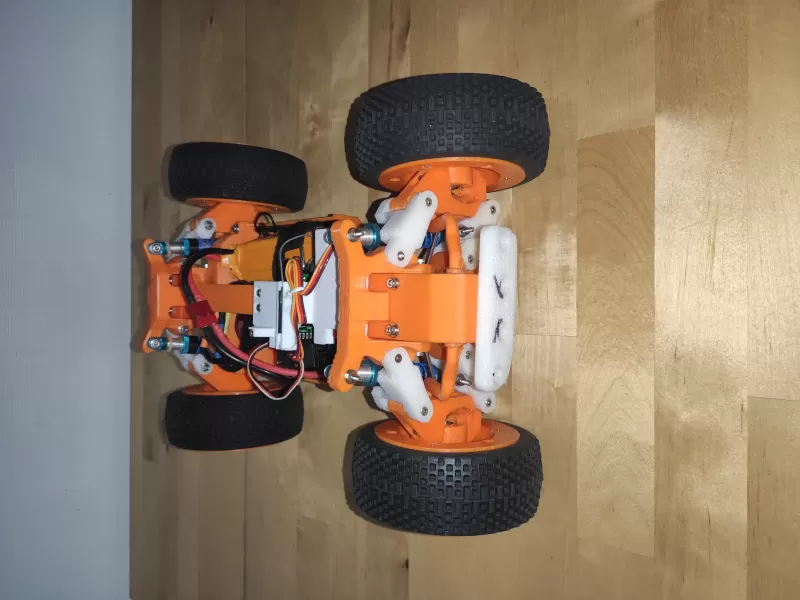

3D Printed RC Car
Reverse Ackermann Steering Compact System or direct drive steering
Full Metal transmission
Metal Steering Linkages Compatible
Brushless Motor 2200KV MAX 3650 up to 4268 (3650 recommended)
3S -4S - 6S
DUAL3S = 6S / DUAL4S = 8S / DUAL6S = 12S
ESP Front Gyroscope
Pinion and Gearing 1mm Module M1 (1mm Diametral Pitch) - No cogging issues
Metal Differential mechanism Central axis Central drive shaft Motor-Gear
Printed Beadlock Rims 2.2p or 3.2p
Dogbones Hexa 12mmm
Strong modulable design easy replace
Standarts parts
4 Arms = 1 Arm (Lowers and Uppers)
4WD -2WD -4x4 -2x4
With or Without Anti roll Bar
1:12 Hardware
No Glue Only M3 Screws Washers and LockNuts
LED Light System Front and Rear
Drift
GoPro Mount
Body Mount + upper protection
Wheelie Bar
Original dogbones and Wheel Nuts and upgrades

If you like it please buy it ;)
