Steampunk Cat Head Wall Hook (for 3D print)

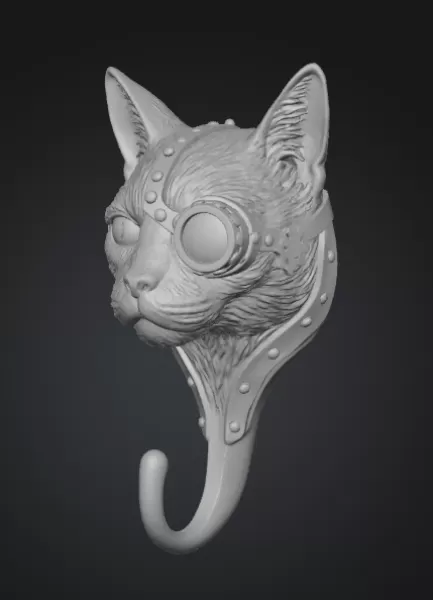

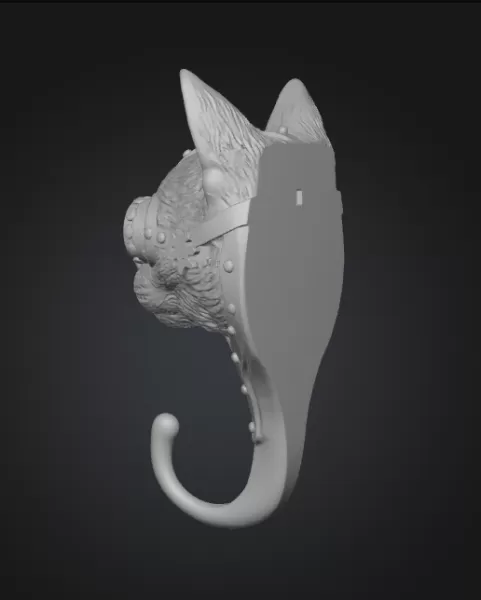

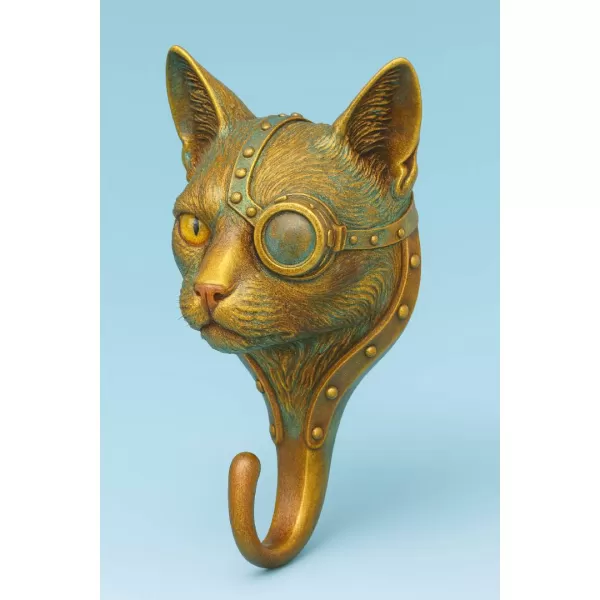

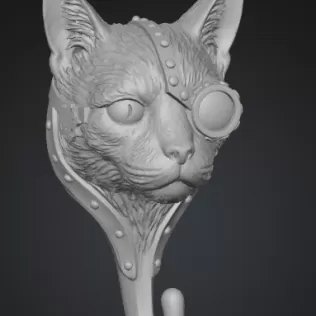

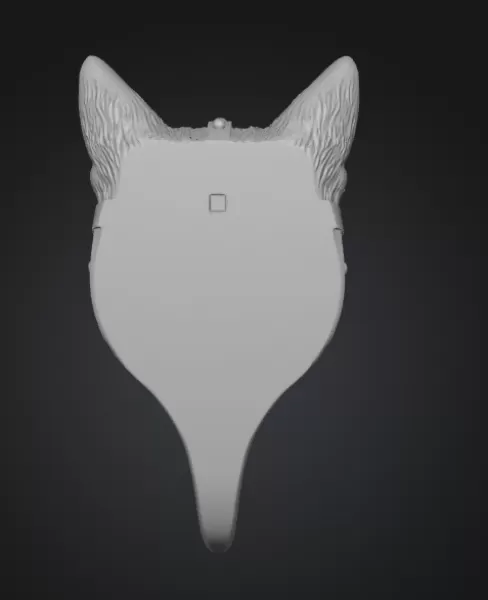

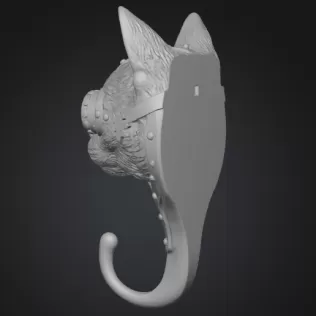

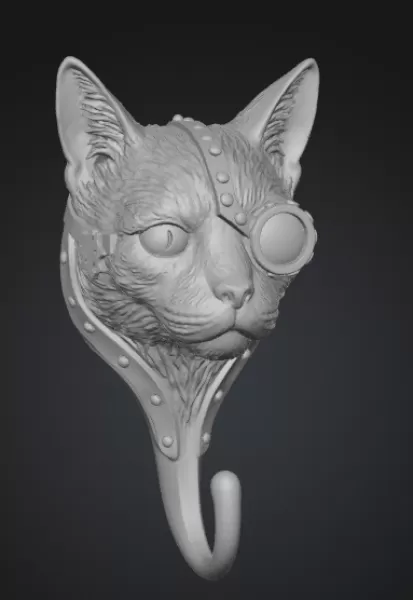

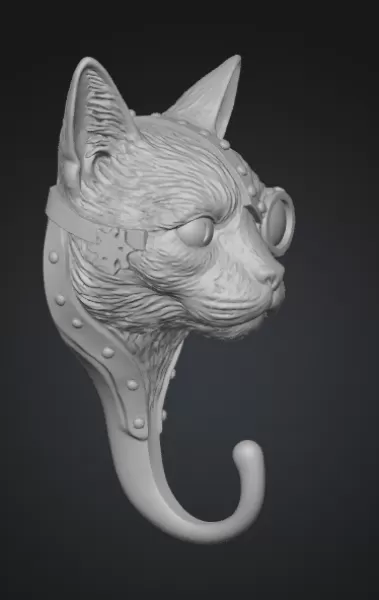

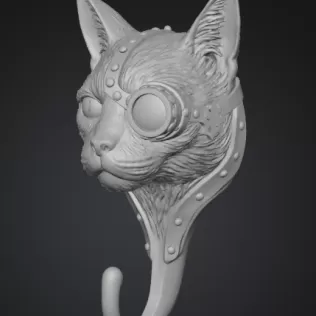

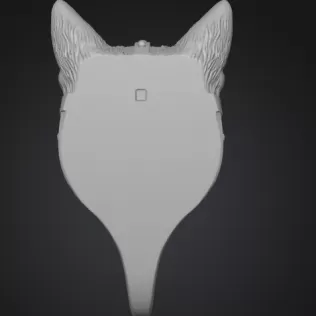

High-detail steampunk cat head that transitions into a functional wall hook. Features a riveted harness, monocle detail and sculpted fur — designed as a single watertight model optimized for printing and post-processing. Best for decorative home use (coat/glasses/key hook depending on scale and material).

Technical metadata (example — replace with your exact export values)

Format: Binary STL

Units: mm

Bounding box (W × D × H): ~120 × 85 × 200 mm (adjust when exporting)

Triangle count: ~70k–150k (high detail)

File size (binary): typically 10–40 MB depending on resolution

Mesh: watertight, manifold, single solid component

Normals: consistent outward

Print preparation checklist

Scale the model so largest dimension matches your intended final size (e.g., 150–200 mm height for wall hook).

Apply transforms / freeze modifiers in your 3D app before export.

Export as Binary STL for smaller, faster uploads.

If file is extremely large, decimate carefully but keep relief detail intact (target ≥ 30k triangles for small prints).

Orient for printing: for resin, angle ~10–25° so detailed front faces are not directly flat to build plate; for FDM, orient so hook curve is supported and the decorative face has minimal support contact.

Check minimum feature thickness (see below) and thicken any filigree below limits.

Printing recommendations
Best printer

SLA / MSLA / DLP (resin) — best for fine fur and monocle detail.

Layer height: 25–50 µm.

Supports: tree supports with small touchpoints under back of head, underside of hook and inner neck; avoid supports on main ornamental face.

Hollowing: optional — hollow to 2–3 mm shell with at least one 3–4 mm drainage hole if >120 mm tall.

FDM (FFF) — possible but expect loss of very fine detail.

Nozzle: 0.25–0.4 mm. Layer height 0.10–0.15 mm for best detail.

Use tree supports or custom support blockers so ornaments remain clean. Add a brim/raft for adhesion if needed.
