PAIR of exhaust pie cut jig 2.5" 3" 3.5" 4" inch 9 and 15 deg

ID: 27194
$9.76

Purchasing is temporarily suspended on threeding.com. Please bear with us and feel free to check out our free models to see if you can find something suitable for your needs. Thank you for your understanding!

3D Model Details

  • Texture: No
  • Multipart model: Yes
  • File format: stl
  • File size: 420 KB
  • Upload date: 10/22/2025
  • Last update: 10/22/2025
Description

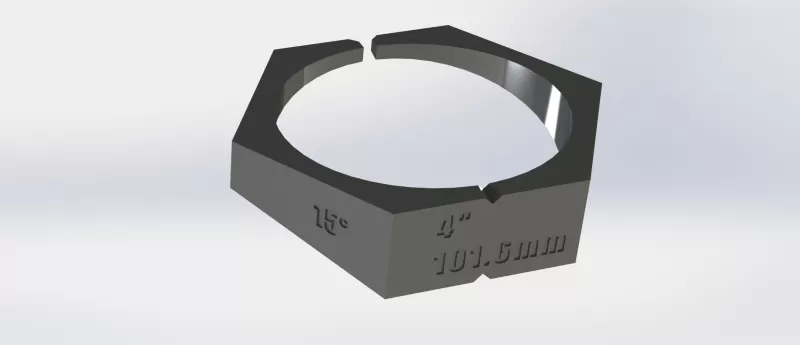

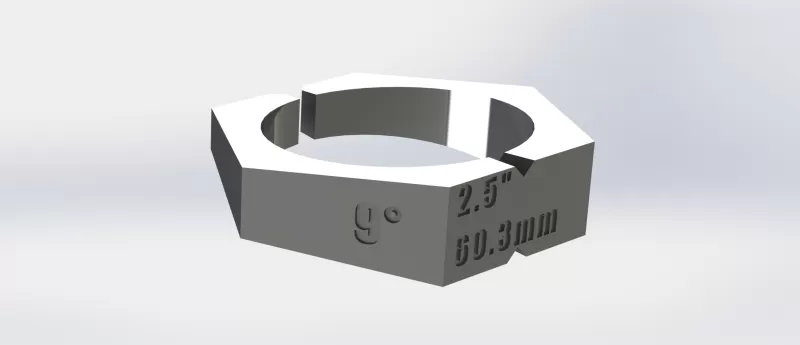

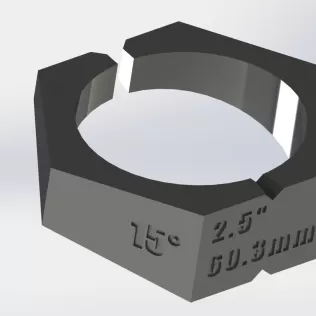

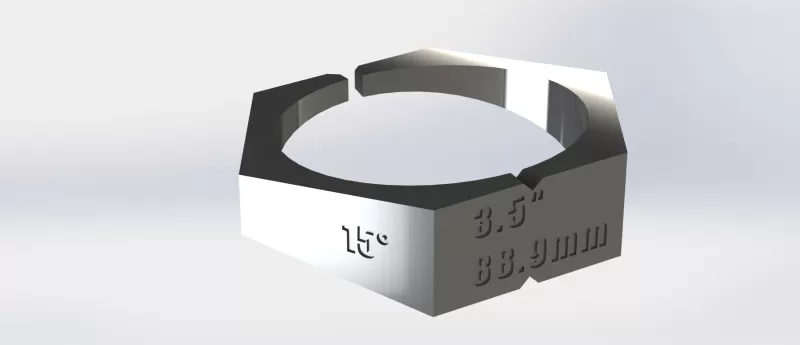

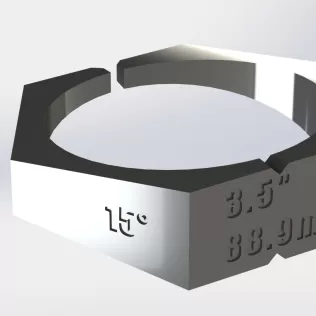

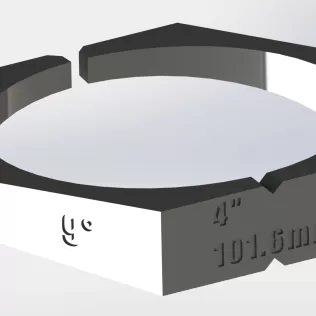

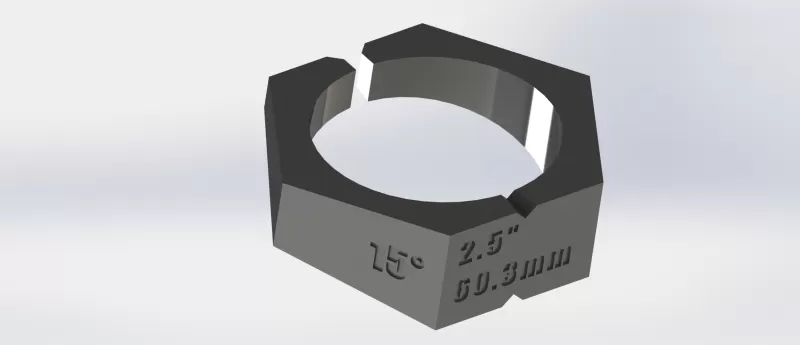

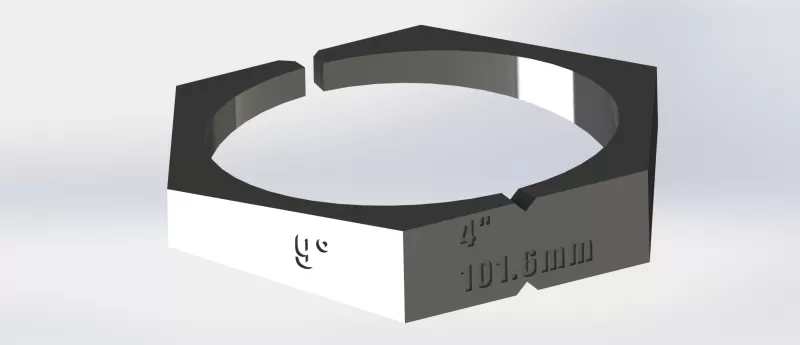

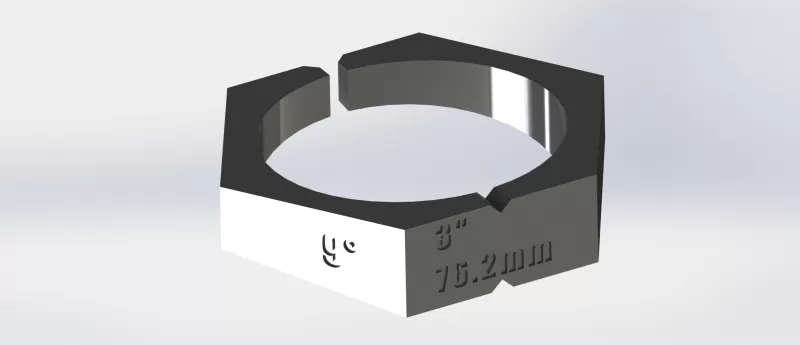

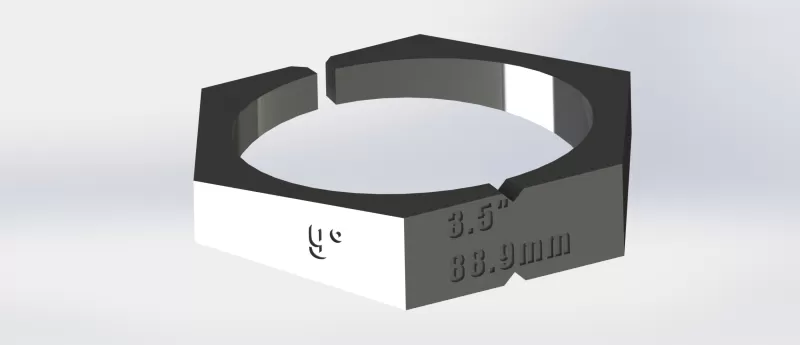

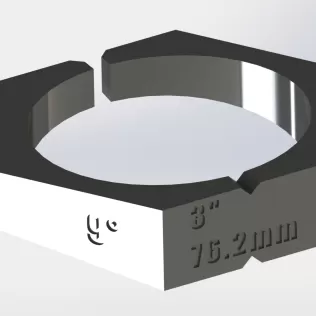

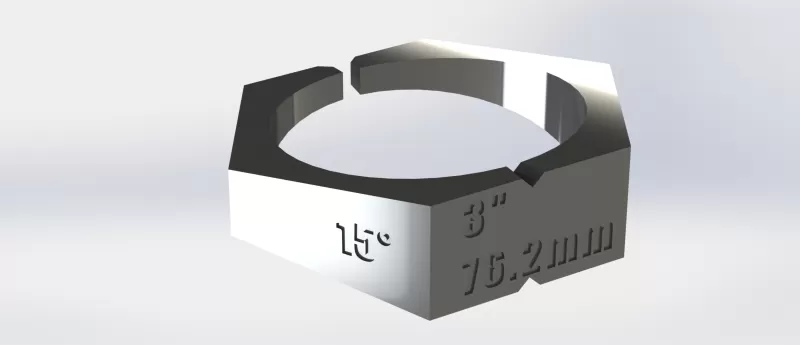

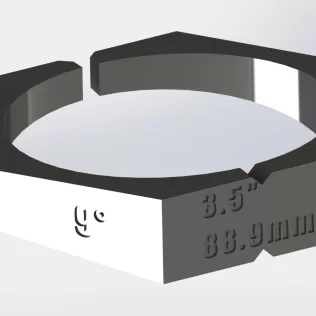

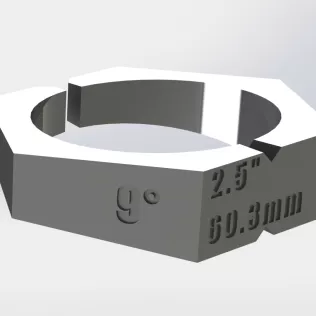

PAIR of exhaust pie cut jig template 2.5" (60.3mm) 3" (76.2mm) 3.5" (88.9mm)4" (101.6mm) 9 and 15 degree for cutting by hand

This jig / template will help you to mark the lines which will be used to cut the pipe

3D printing settings
0.2mm layer height

0.4mm nozzle

PLA 25% infill
Tags
  • cut
  • template
  • pipe
  • race
  • intake
  • exhaust
  • manifold
  • sport_car
  • JIG
  • mandrel
  • welding
  • welding tool
  • pipe cut
  • pipe cut jig
  • intake pipe
