Furniture template tool for 18mm chipboard assembly with 5mm fix
g
ID: 25698
$14.64
3D Model Details
-
Texture: No
-
Multipart model: Yes
-
File format: stl
-
File size: 293.13 KB
-
Upload date: 08/05/2025
-
Last update: 08/05/2025
Description

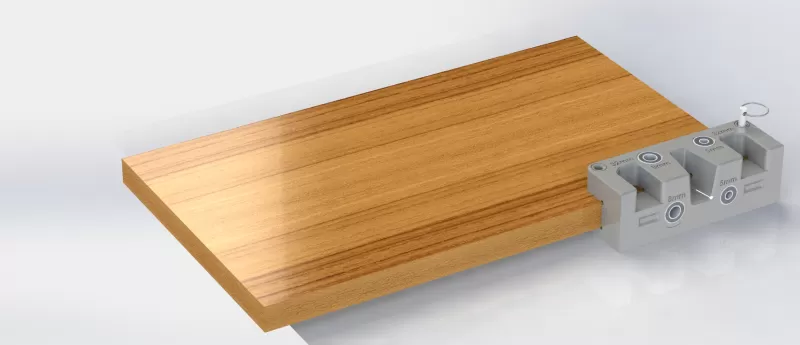

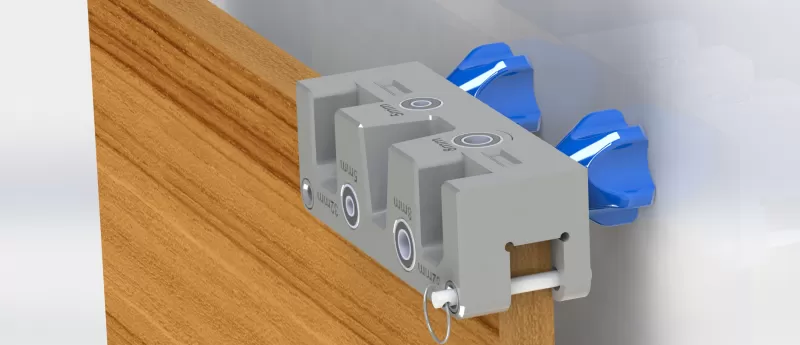

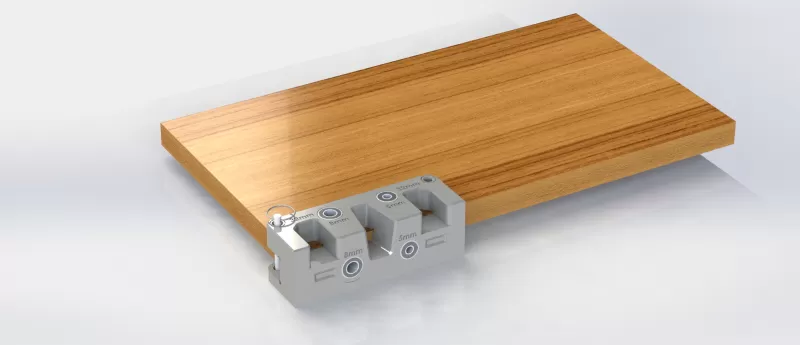

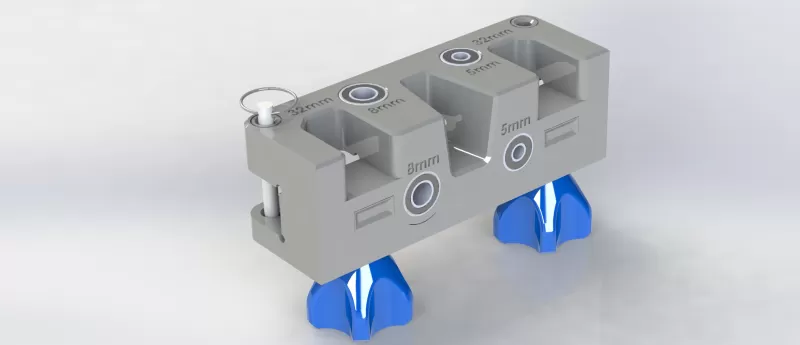

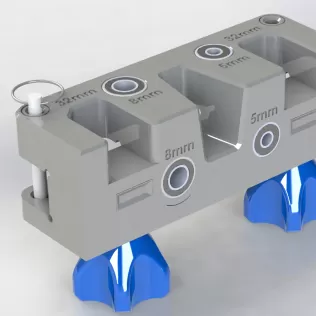

Furniture template tool for 18mm chipboard assembly with 5mm fixing bolts and / or 8mm wood peg
Used for precise holes for 5mm bolt fixation and / or 8mm wood peg for 18mm chipboard assembly.
Adjustable to reach all chipboard planes and edges

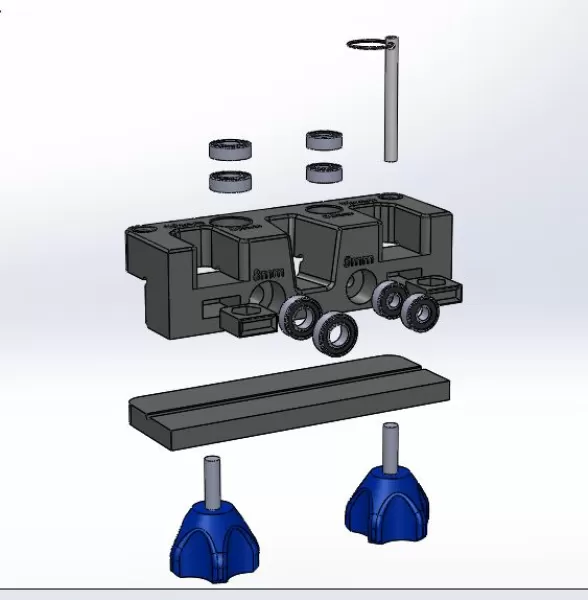

Additional elements for precise guiding used:
- Ball bearing 605 2RS 4 pcs 5mm inner diameter and 14mm outer diameter
- Ball bearing 688 ZZ 4 pcs 5mm inner diameter and 14mm outer diameter
- 1 pcs of steel bar (5mm diameter and 50mm length) for edge stopper
- 1 pcs M6 nut
- 1 pcs M6x30mm hexagin screw
Used for precise holes for 5mm bolt fixation and / or 8mm wood peg for 18mm chipboard assembly.
Adjustable to reach all chipboard planes and edges
Additional elements for precise guiding used:
- Ball bearing 605 2RS 4 pcs 5mm inner diameter and 14mm outer diameter
- Ball bearing 688 ZZ 4 pcs 5mm inner diameter and 14mm outer diameter
- 1 pcs of steel bar (5mm diameter and 50mm length) for edge stopper
- 1 pcs M6 nut
- 1 pcs M6x30mm hexagin screw
