Steampunk Shark Hook

High-detail, watertight STL of a steampunk shark head that transitions into an integrated wall hook — riveted straps, monocle/gear detail, and patina-ready surfaces for metallic finishing.

What’s included

Single watertight STL file containing the entire solid model (shark head + harness + hook).

Model exported as one shell with outward-facing normals and no internal overlapping geometry.

Ready for slicing (no assembly required) — intended as a single-piece decorative hook.

Model intent & presentation

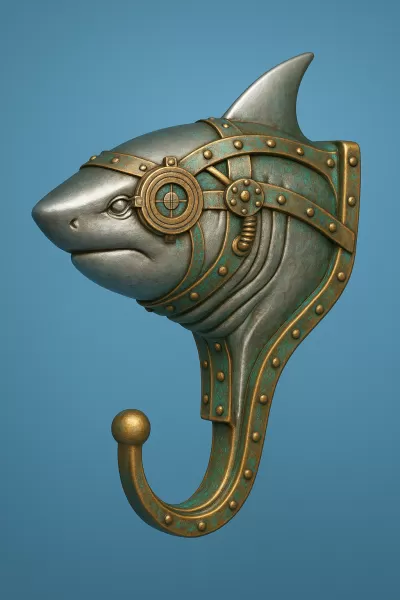

This STL contains geometry only (no color or materials). It’s designed to be printed and then finished to resemble mixed metals: silver/steel shark body with brass/bronze harness and verdigris patina in recessed areas. The provided product images use a light blue background for presentation; the STL itself holds only the geometry.

Recommended use

Decorative wall hook for light items (coats, keys, towels) or display piece.

Suitable for resin (SLA) printing for fine detail or FDM for larger, robust prints with appropriate settings.

Recommended FDM (filament) print settings

Printer type: FDM desktop printer (or SLA for finer results)

Material: PETG or PLA+ recommended; use ASA/PETG for better toughness if hanging weight. Resin (SLA) recommended for gallery-quality detail.

Nozzle size: 0.4 mm (0.25 or 0.35 mm for better rivet fidelity)

Layer height: 0.12–0.2 mm (0.08–0.12 mm for higher fidelity)

Perimeters / walls: 3–5 perimeters (increase to 5–8 if you need a very strong hook)

Top/bottom layers: 6–8

Infill: 20–40% general; increase to 50–100% in the hook region if you plan to hang weight

Print orientation:

Default: Upright (head up, hook down). Natural display orientation but may need supports under chin and monocle.

Strength tip: To maximize hook strength, orient the hook so its curve layers run along the load direction (rotate 90°) — this places layer interfaces parallel to the hook curvature and reduces shear failures.

Supports: Required under the monocle, under the chin/neck overhangs, and inside the hook depending on orientation. Use tree supports or breakaway supports accessible from non-visible surfaces.

Bed adhesion: Brim recommended for larger prints; use heated bed and adhesion method suitable for your filament.

Recommended SLA (resin) print settings

Layer height: 25–50 µm for finest wrinkles and rivet detail.

Orientation: Slightly tilted (10–30°) to reduce large flat support contact areas on the face; place supports on rear surfaces.

Supports: Light-touch supports on non-visible rear/back surfaces; avoid supports directly on rivets or eye details when possible.

Post processing: Wash and cure per resin manufacturer instructions; sand and prime before painting.
